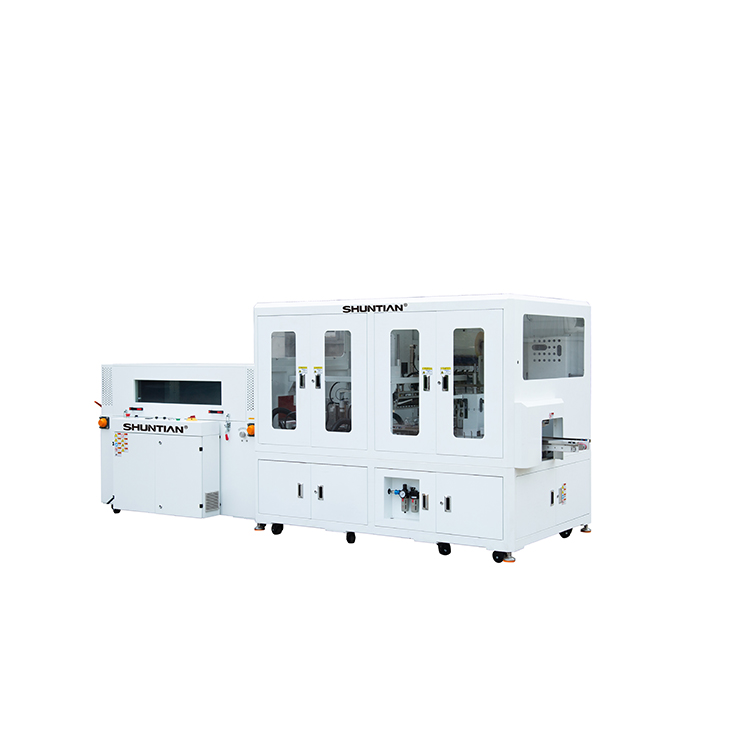

STFQJ3525-120CM&STS4525LS
★ Voltage: single-phase AC 220V 50Hz (three-phase 380V AC is required for the heat shrink machine), gas source: 0.55~0.7Mpa.
The machine is composed of a steel structure welded base, a peripheral sheet metal welded outer cover, and a main functional structural area with windows (acrylic).
All doors and windows are equipped with sheet metal locks and safety sensors.
Install safety detection devices at entrances and exits.
★ The external dimensions (specific dimensions may vary slightly according to customer requirements) can be customized. Length: 2630mm (excluding heat shrink furnace and detachable parts, removing the detachable part 2540mm) Width: 1400mm Height: 1750mm.
★ Efficiency of 800-900/hour.
★ Time to switch packaging specifications: 15 minutes (for used color boxes with parameters). Changing the type does not require changing any accessories.
STFQJ5032-15CM&STS4525LS-150
★ Voltage: single-phase AC 220V 50Hz (three-phase 380V AC is required for the heat shrink machine), gas source: 0.55~0.7Mpa. ★ The machine is composed of a steel structure welded base, a peripheral sheet metal welded outer cover, and a main functional structural area with open windows (acrylic) ★ All doors are equipped with sheet metal locks and safety sensors.
Install safety detection devices at entrances and exits.
★ External dimensions (specific dimensions may vary slightly according to customer requirements) Length: 2830mm, Width: 1400mm, Height: 1750mm.
★ Packaging efficiency: 400-600 packs/hour. The packaging speed varies depending on the size of the box.
